Open-cell spray foam insulation works by expanding into every gap, crack, and cavity in your walls and attic to create an airtight seal that traditional insulation materials like fiberglass and cellulose simply cannot match. The result is a home that holds steady temperatures, eliminates cold spots, and keeps conditioned air exactly where it belongs. Whether you are dealing with a single drafty bedroom or whole-house comfort issues, the right insulation strategy depends on your climate zone, existing construction, and budget. Open-cell spray foam serves a specific role in this mix: it provides strong air sealing at a lower material density than closed-cell alternatives, making it particularly well-suited for interior wall cavities, attics, and band joists in above-grade applications.
TLDR: Key Takeaways
- Open-cell spray foam delivers approximately R-3.6 per inch of thermal resistance and is considered air-impermeable at typical application thicknesses, meaning it blocks drafts effectively even at thinner profiles.
- Unlike fiberglass or cellulose, open-cell spray foam expands up to 150 times its original volume, filling gaps and voids that cause air leakage and cold spots in rooms.
- The material is moisture-vapor permeable, which allows wall assemblies to dry toward the exterior in many climate zones, reducing the risk of hidden moisture damage.
- Open-cell spray foam is rated “preferred” for frame-wall cavities in cold and hot-dry climates and “acceptable” in hot-humid climates according to DOE Building America research.
- Typical installations fill a 5.5-inch cavity at full depth, delivering roughly R-20 in a single pass, which covers most code requirements for standard wall assemblies.
- The material should not be used below grade or in locations exposed to bulk water, as it can absorb and hold significant moisture.
- A professional home energy assessment using blower door testing and infrared cameras is the best starting point before choosing an insulation approach.
What Causes Drafty Rooms in the First Place
Drafty rooms are almost always the result of uncontrolled air leakage through the building envelope. As the U.S. Department of Energy explains, air leakage occurs when outside air enters and conditioned air leaves your home uncontrollably through cracks and openings in framing, around windows, through electrical penetrations, and along the tops and bottoms of walls. During cold or windy weather, excess air rushes in. During warmer, calmer periods, not enough fresh air enters, which leads to stale indoor air quality.
Traditional insulation materials like fiberglass batts and blown-in cellulose provide thermal resistance, but they do not create an air barrier. Air moves through and around them, especially in areas where the material is compressed, poorly fitted, or missing entirely. This is why a room can have insulation in the walls and still feel cold and drafty in winter or humid and stuffy in summer.
The key to fixing drafty rooms is two-fold: seal the air leaks first, then ensure adequate thermal resistance. Open-cell spray foam addresses both simultaneously, which is what sets it apart from most conventional insulation options.
How Open-Cell Spray Foam Works
Open-cell spray polyurethane foam (SPF) is applied as a two-part liquid that expands rapidly on contact. According to the DOE Building America research guide, open-cell SPF expands approximately 150 times its original volume and cures into a soft, flexible matrix of interconnected open cells filled with air. The finished material weighs roughly 0.5 pounds per cubic foot, giving it a spongy texture that is easily compressible.
That expansion is what makes open-cell spray foam insulation so effective at stopping drafts. As the liquid spray contacts surfaces, it flows into and seals gaps, cracks, and voids that would remain open with batt or blown-in insulation. The DOE research confirms that both open-cell and closed-cell SPF are “excellent at air-sealing” and that this air-blocking capability makes SPF performance “superior to other typical insulations such as fiberglass or cellulose, which are far less able to block airflow.”
Despite being lighter and less dense than closed-cell foam, open-cell SPF achieves an R-value of approximately 3.6 per inch and acts as an effective air barrier at standard application thicknesses.
Open-Cell vs. Closed-Cell: Which One Addresses Your Draft Problem
The choice between open-cell and closed-cell spray foam depends on where you need to insulate, your climate, and your performance priorities. Both types are typically made from polyurethane, but they differ significantly in density, R-value, moisture resistance, and cost.
| Property | Open-Cell Spray Foam | Closed-Cell Spray Foam |
|---|---|---|
| Density | ~0.5 lb/cubic foot | ~2.0 lb/cubic foot |
| R-Value per inch | ~R-3.6 | ~R-6.0 to R-6.1 |
| Air Barrier | Yes, at typical thicknesses | Yes |
| Vapor Barrier | No (vapor permeable) | Yes, at typical thicknesses |
| Expansion Ratio | Up to 150x original volume | 35-50x original volume |
| Moisture Absorption | Can absorb and hold water | Hydrophobic, will not absorb |
| Best Applications | Wall cavities, attics, band joists | Foundations, roofs, flood-prone areas |
According to the DOE’s Energy Saver guide on insulation materials, closed-cell foam has a higher R-value and stronger resistance against moisture and air leakage, but it is denser and more expensive. Open-cell foam is lighter, more affordable, and better suited for interior above-grade applications where its vapor permeability is actually an advantage.
For drafty rooms specifically, open-cell spray foam is often the more practical choice for wall cavities and attic floor sealing because it fills cavities in a single pass and allows the assembly to breathe.
Where Open-Cell Spray Foam Performs Best
The DOE Building America guide rates open-cell spray foam applications by climate and location. Here is a summary of where it shines for comfort improvement:

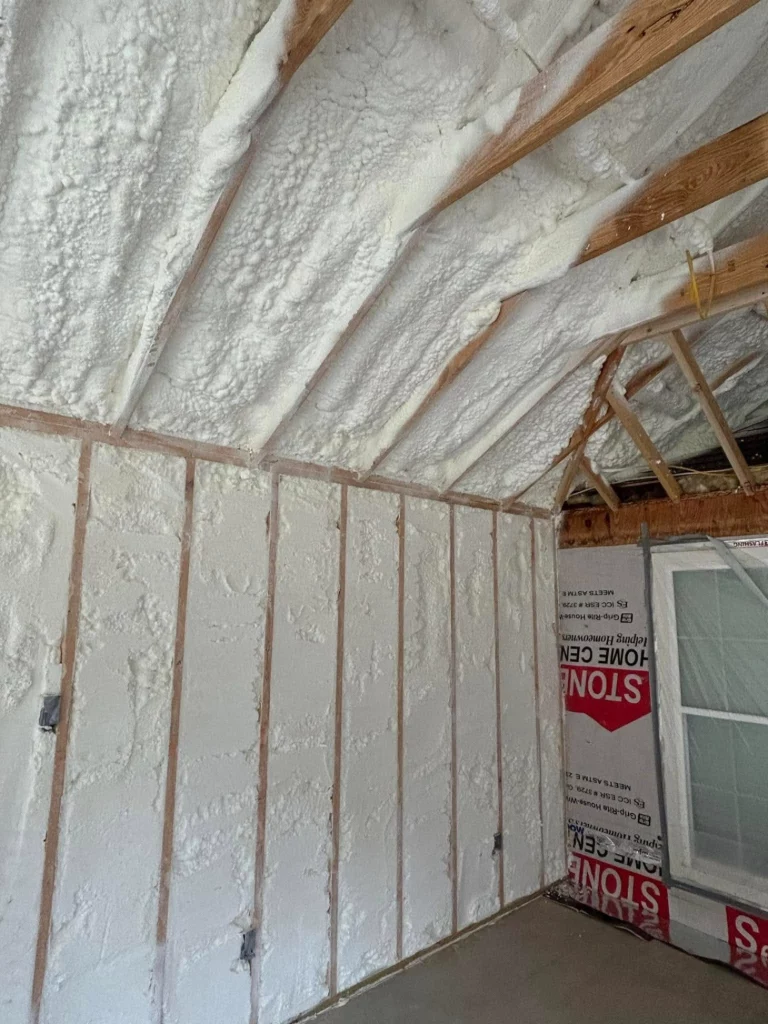

Frame Wall Cavities
Open-cell SPF is rated “preferred” for frame-wall cavities in cold climates and hot-dry climates, and “acceptable” in hot-humid climates. A typical 5.5-inch cavity filled to full depth delivers approximately R-20, which meets or exceeds code requirements in many climate zones. The air-sealing quality at this location is particularly valuable because wall cavities are a major source of hidden air leakage between living spaces and the exterior.

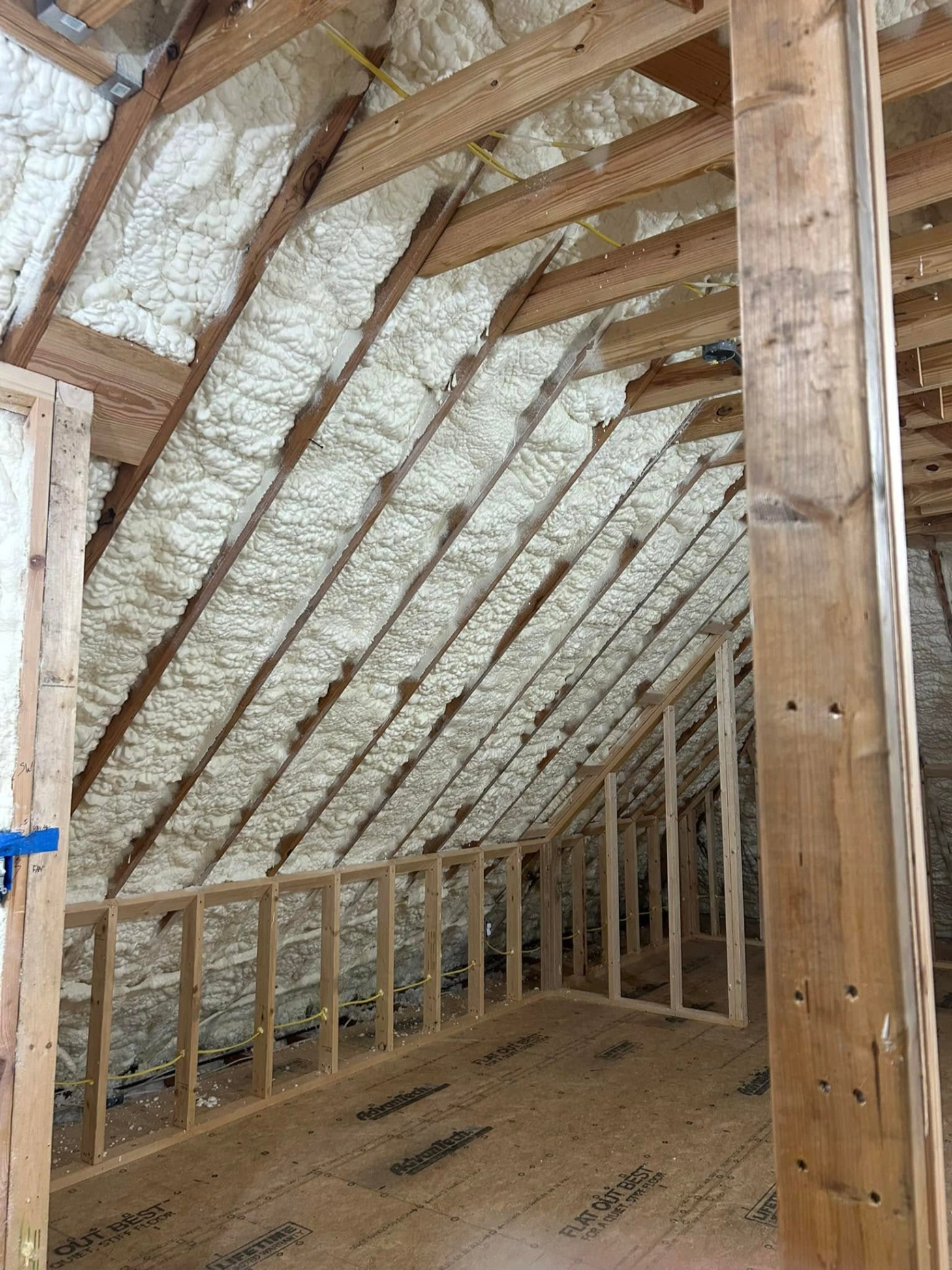

Sloped Roof Rafters and Cathedral Ceilings
Open-cell SPF is rated “acceptable” for sloped roof applications in both cold and hot-humid climates. Applying foam directly to the roof deck blocks air infiltration at a location where traditional insulation often falls short. The material’s vapor permeability allows the roof assembly to dry inward, which is an important durability factor.
Band Joists and Mudsills
Open-cell SPF provides a “good alternative” at band joist locations, areas where floor joists meet the exterior perimeter and are notoriously difficult to insulate with batts. Because band joists represent a relatively small area, this is an effective place to use open-cell foam even on a limited budget.
Where to Avoid Open-Cell Foam
The DOE guide rates open-cell SPF as “not acceptable” for foundations and below-grade spaces, HVAC duct insulation in humid attics, and behind brick veneer. Its moisture-absorbing properties make it a poor choice anywhere bulk water exposure is possible.
Signs Open-Cell Spray Foam Is the Right Fix for Your Home
How do you know if open-cell spray foam is the right solution for your drafty room problem? Here are the indicators that matter:
- Your home has visible air leakage around windows, outlets, and baseboards. The DOE recommends detecting air leaks through visual inspection, building pressurization tests, or professional blower door testing. If you can feel drafts at electrical outlets or see daylight around door and window frames, you have uncontrolled air infiltration that spray foam can address.
- Your existing insulation is fiberglass batts or blown-in material with gaps and settling. These materials provide thermal resistance but do not block air flow. Open-cell spray foam upgrades both properties simultaneously.
- You live in a climate zone where wall cavities benefit from vapor-permeable insulation. In cold and hot-dry climates, open-cell SPF allows assemblies to dry to the exterior, which improves long-term durability.
- Your drafty rooms are above grade. Open-cell spray foam is well-suited for interior walls, attic floors, and cathedral ceilings, all common locations for comfort complaints.
- You want a single-pass solution rather than a multi-step process. Because open-cell foam can be applied to full cavity depth in one pass (up to roughly 10 inches), it reduces installation time compared to closed-cell foam, which requires multiple thinner layers.
How to Get Started With an Insulation Upgrade
The DOE Energy Saver guide on adding insulation to existing homes recommends starting with a professional home energy assessment to identify where your home is losing energy and where insulation upgrades will have the greatest impact. An energy assessor uses tools like blower doors and infrared cameras to pinpoint air leaks and thermal weak spots that you cannot see with a visual inspection alone.
After the assessment, the results guide where insulation should be added and which type makes the most sense for each area of your home. In many cases, a combination approach works well: open-cell spray foam for wall cavities and hard-to-reach areas, paired with other insulation types in locations where spray foam is not the best fit.
Sound Control: An Often Overlooked Comfort Benefit
Drafty rooms are not just a temperature problem. Air leakage also carries sound. The DOE Building America research reports that a 2×4 wood stud wall assembly insulated with open-cell spray foam achieves a Sound Transmission Class (STC) rating of 23 and a Noise Reduction Coefficient (NRC) of 70, which means it absorbs a significant portion of sound energy within the room. For homeowners bothered by noise traveling between rooms or from the exterior, this acoustic benefit adds another layer of comfort improvement beyond draft reduction.
Get a Professional Comfort Assessment From Premier Insulation
If drafty rooms are making your home uncomfortable and driving up energy bills, our team at Premier Insulation can help you determine whether open-cell spray foam is the right solution for your specific situation. We evaluate your home’s air sealing needs, identify the insulation type that matches your climate and construction, and provide a clear plan for improving comfort from room to room. Call us at (229) 843-6767 or email premiereinsulationga@gmail.com to get started.
With the right insulation strategy and professional installation, drafty rooms do not have to be something you just live with.
Frequently Asked Questions
How does open-cell spray foam stop drafts better than fiberglass insulation?
Open-cell spray foam expands into and seals every gap and crack in a wall cavity, creating an air-impermeable barrier at typical application thicknesses. Fiberglass batts provide thermal resistance but do not block air movement, so drafts continue through gaps and around the material.
Can open-cell spray foam be used in my attic?
Yes, open-cell spray foam is rated as an acceptable application for attic floors below vented attic spaces and for sloped roof rafters in both cold and hot-humid climates. It should not be used in locations exposed to bulk water or below grade.
Does open-cell spray foam help with noise between rooms?
Yes. Open-cell spray foam achieves a Noise Reduction Coefficient of 70 in standard 2×4 stud wall assemblies, meaning it absorbs roughly 70% of sound energy that reaches it. This makes it effective for reducing sound transfer between rooms in addition to sealing air leaks.
Q: Is open-cell spray foam safe to install in an existing home?
Yes, when installed by trained professionals. The DOE notes that installation of liquid foam insulation requires special equipment and certification. After installation, all foam materials must be covered with an approved thermal barrier such as half-inch gypsum board per building code requirements.
How long does open-cell spray foam last once installed?
The R-value of open-cell spray foam uses air as the blowing agent and does not experience thermal drift over time, unlike some closed-cell foams whose R-values can decrease as low-conductivity gases escape. This means its thermal performance remains stable for the life of the installation.
